Magnetic shielding for sensors and electronic devices磁場屏蔽用于傳感器和電子設備
Mu-ferro HD
Magnetic shielding for sensors and electronic devices磁場屏蔽用于傳感器和電子設備
For magnetic shielding of electronic devices and PCBs, Mu-ferro 6800-HD has been developed. Mu-ferro 6800-HD is used to prevent a device emitting low frequency magnetic radiation (0Hz – 300KHz), or it is applied around a sensitive device or sensor, to prevent the electromagnetic interference disrupting normal operations.
對于電子設備和PCB的磁屏蔽，Mu-ferro 6800-HD已經開發出來了。Mu-ferro 6800-HD被用于預防一個設備發射低頻磁場輻射(0Hz – 300KHz)，或者它被應用包裹一個敏感設備或傳感器，以預防電磁干擾損壞正常的運行。
Mu-ferro 6800-HD offers important magnetic field shielding characteristics, due to its high magnetic permeability and its ability to absorb magnetic energy. This allows for the highest possible attenuation, making this shielding alloy the material of choice for reducing low-frequency electromagnetic interference.
Mu-ferro 6800-HD提供了重要的磁場屏蔽特性，由于它的高導磁率和它的吸收磁能量的能力。這個允許用于最高可接受的衰減，制作這個屏蔽合金材料的選擇為了減少低頻電磁干擾。
For magnetic shielding of electronic devices, Mu-ferro 6800-HD is available in 1 and 0.5 mm thick plate material. In addition we can produce custom shapes which will yield the best possible shielding effect for your needs.
對于電子設備的磁屏蔽，Mu-ferro 6800-HD可獲得在1和 0.5 mm厚板材。另外，我們能生產定制的形狀以產生最好的屏蔽效果。
Mu-ferro 6800-HD is also available as a foil, delivered on rolls (0.024 mm thick) with or without regular or conductive self adhesive for high frequency shielding and easy mounting.
Mu-ferro 6800-HD也可以提供薄片形狀，交貨以卷的形式(0.024 mm 厚)帶有或不帶有常規的或?qū)щ娮哉秤糜诟哳l屏蔽和容易裝配。

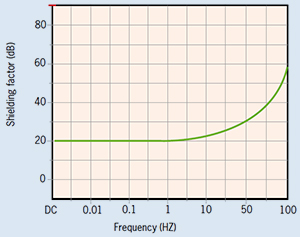

Shielding performance屏蔽性能 2 mm Mu-ferro-HD
Properties特性
Carbon碳 |
0.02% |
|
Manganese錳 |
0.50% |
|
Silicone硅樹脂 |
0.35% |
|
Nickel鎳 |
80.00% |
|
Molybdenum鉬 |
4.20% |
|
Iron鐵 |
Balance |
|
Density密度 kg/m3 |
8747 |
|
Thermal conductivity熱導率 W/m K |
34.6 |
|
Electrical conductivity電導率 micro-ohms微歐 |
580 |
Applications應用
- Aviation and aerospace industry 航空工業
- Sensitive sensors 敏感的傳感器
- Medical equipment 醫學設備
- Physics research 物理學研究
- Telecommunication 電信
- Automotive 自動化
- Military軍事
Example舉例
Sheet of Mu-ferro-HD, 50 x 1000 mm and 1 mm thick.
Mu-ferro-HD的薄片，50 x 1000 mm 和 1mm厚。
Part number零件號 |
Width寬度 (mm) |
Length 長度 |
Thickness厚度 |
|
Mu-ferro-HD |
50 |
1000 |
1 mm |
|
|
Specify the width in mm |
Specify the length in mm |
Thickness厚度 in mm |
